COPYLynx revolutionizes data transfer of large amounts of storage and offers a state-of-the-art data copy station specifically designed for xSTORAGE removable storage. This solution enables fast, secure and efficient data transfer to both data centers and the cloud. With an advanced hash algorithm, optimized data feed and a powerful CPU, COPYLynx ensures the highest level of data integrity and security. The station supports a wide range of network interfaces for maximum flexibility and, thanks to its stand alone functionality, is ideal for both on-site and remote use.
Why choose COPYLynx?
Especially in the automotive environment, it is necessary to be able to transfer data in a wide variety of formats and from various sources to a number of different destinations. For this reason, the data copy station offers you numerous network interfaces and ports. This ensures high flexibility, efficiency, and compatibility during data transfer. The COPYLynx is an extremely scalable solution, which can adapt to changing requirements and therefore be easily integrated into new systems and technologies.
Thanks to its intelligent plug and play functionality, the copy station is a stand-alone system. You do not need a PC connection, peripherals, or software configuration to copy data. So, the COPYLynx can be easily deployed wherever you need it - without any external dependencies. Just plug it in and go!
Which COPYLynx is right for you?

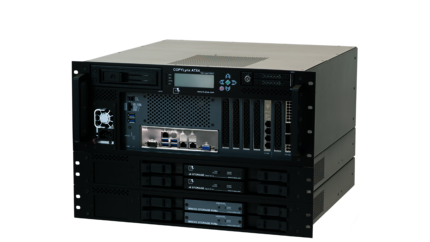

COPYLynx ATX4 Gen3
|

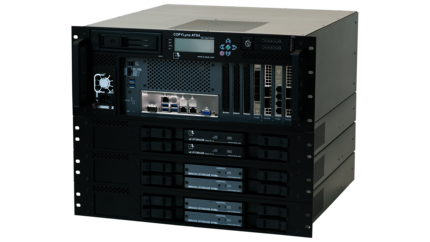

COPYLynx ATX4 Gen4
|
|
|---|---|---|
xSTORAGE Interface |
4x STORAGE slot, PCIe 3.0 x8 |
6x STORAGE slot, PCIe 4.0 x8 |
xSTORAGE Support |
x8 STORAGE (no adapter required) - x8 STORAGE - Gen4 E1.S - BRICK2 STORAGE NVMe - BRICK2 STORAGE
x4 STORAGE (adapter required) - BRICK STORAGEplus - BRICK STORAGE
MDLake |
x8 STORAGE (no adapter required) - x8 STORAGE - Gen4 E1.S - BRICK2 STORAGE NVMe - BRICK2 STORAGE
x4 STORAGE (adapter required) - BRICK STORAGEplus - BRICK STORAGE
MDLake |
CPU Platform |
AMD Epyc™ 7443, 24 Core CPU 64GB DDR4, Linux OS |
AMD Epyc™ 7763, 64 Core CPU 128GB DDR4, Linux OS |
Bandwidth |
up to 144 Gbit/s max. 48 Gbit/s per xSTORAGE |
up to 256 Gbit/s max. 96 Gbit/s per xSTORAGE |
USB Source/Target |
6x USB 3.0 |
6x USB 3.0 |
SATA Source/Target |
1x 3.5” SATA HDD Swap Rack 2x 2.5” SATA SSD Swap Rack |
1x 3.5” SATA HDD Swap Rack 2x 2.5” SATA SSD Swap Rack |
LAN Source/Target |
2x 1GbE 4x 10GbE 2x 100G QSFP56 |
2x 1GbE 4x 10GbE 4x 10G SFP+ 4x 100G QSFP56 |
Windows FS |
FAT16, FAT32, NTFS, exFAT |
FAT16, FAT32, NTFS, exFAT |
Linux FS |
ext3, ext4, XFS, JFS, VFAT |
ext3, ext4, XFS, JFS, VFAT |
Ethernet Share |
Samba / CIFS 1.0, 2.0, 2.1, 3.0 NFS v2, v3, v4 |
Samba / CIFS 1.0, 2.0, 2.1, 3.0 NFS v2, v3, v4 |
Cloud Services |
Amazon AWS S3, IBM® Aspera® |
Amazon AWS S3, IBM® Aspera® |
Drive en/decryption |
Microsoft Azure, Microsoft Bitlocker |
Microsoft Azure, Microsoft Bitlocker |
File encryption |
Open SSL based |
Open SSL based |
Power Supply |
100 – 240 V 47 – 63 Hz AC~ |
100 – 240 V 47 – 63 Hz AC~ |
Power Consumption |
up to 640 W + up to 4x 100W (xSTORAGE) |
up to 870 W + up to 6x 110W (xSTORAGE) |
|
get more info on the
COPYLynx ATX4 Gen3 |
get more info on the
COPYLynx ATX4 Gen4 |
