CAN modules

Control elements for mobile machines

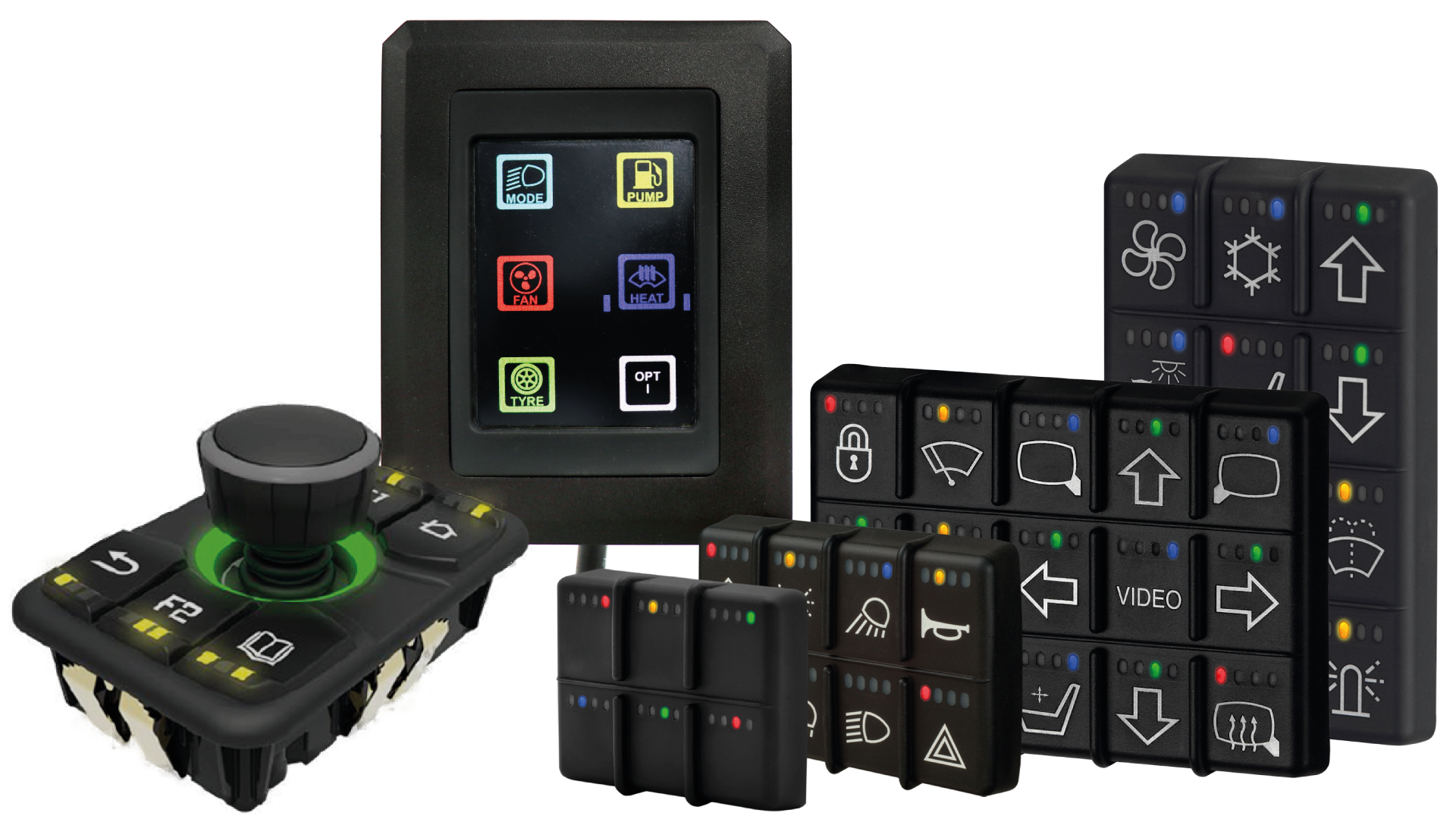

Robust operating elements are an essential component for the reliable control of mobile machines and vehicles. At the same time, these operating elements have always to be individually adapted to the respective machine or vehicle in the projects. This is where intelligent as well as robust and simple vehicle networking comes into play. We offer you a wide range of control elements in various designs, which can be networked via CAN, for example. Perfectly matched, we also offer individual engraving of your HMIs for projects.

We are happy to implement these in individual developments according to your specific requirements.

Operating elements for mobile machines

Key Features

b-Drive Cab Control

The b-Drive Cab Control HMIs are suitable for mobile applications with SAE1939 or CANopen interface. b-Drive is available with either five or six buttons, encoder with pushbutton or joystick encoder with pushbutton.

On customer request, we can engrave the b-Drives individually with our in-house laser system.

Switch modules and keypads

The SwitchModules are equipped with a modular structure and its focus on the on-board area, perfect for installation in commercial vehicles as switching modules. The KeypadModules are switch modules with a modular setup and a SAE J1939 interface, available in different variants (6, 8, 12 or 15 keys).

On customer request, we can engrave the modules individually with our in-house laser system.

Customized lasering

You would like to engrave our robust control elements with your customized designs? No problem: with our in-house laser system, all options are open.



b-Drive

Variants

b-Drive Cab Control

8080

b-Drive Cab Control G2

8081

Interfaces

J1939 or CANopen interface

J1939 or CANopen interface

Protection class

IP67

IP67

Buttons

5 buttons

1 joystick or encoder with button

Dimmable LED indicators and symbols

6 pushbuttons, each with 3 status LEDs

2 axis proportional digital or analog joystick with encoder and pushbutton

Dimmable LED indicators and symbols

Features

Vibration and shock proof

Vibration and shock proof

Operating voltage

6 - 30 V

6 - 30 V

Operating temperature

-40 °C … + 85°C

-40 °C … + 85°C

CE conformity

ISO 14982 – Agricultural and forestry machinery (EMC)

EN13309:2000 – Construction machinery

ISO 14982 – Agricultural and forestry machinery (EMC)

EN13309:2000 – Construction machinery

get more info on the
b-Drive Cab Control
get more info on the
b-Drive Cab Control G2





Switch and keypad modules

Variants

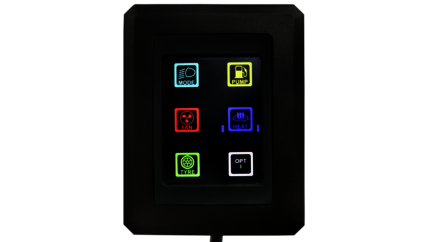

KeypadModules

8094

SwitchModulesSealed

8093

SwitchModules

8092

Protocol

SAE J1939 (LIN2.0 internal)

SAE J1939 (LIN2.0 internal)

SAE J1939 (LIN2.0 internal)

Life time

Up to 1 million cycles

Up to 500000 cycles

Up to 300000 cycles

Expansion

Up to 7 expansion modules for up to 24 rockers

Up to 7 expansion modules for up to 24 rockers

Up to 7 expansion modules for up to 24 rockers

Protection class

IP68

IP68

IP53

Operating temperature

-40°C … +85°C

-40°C … +85°C

-40°C … +85°C

Operating voltage

9 - 32 V DC

9 - 32 V DC

12/24 V DC

get more info on the
KeypadModules
get more info on the
SwitchModulesSealed
get more info on the
SwitchModules

Complete your setup

Order information

Order information b-Drive Cab Control



Name Order number Description
b-Drive Cab Control Encoder 4000107 5 buttons, 1 encoder with button, dimmable lighting, J1939 CAN® protocol - 3J0015-200
b-Drive Cab Control Encoder 4000108 5 buttons, 1 encoder with button, dimmable lighting, CANopen® protocol - 3J0015-200N
b-Drive Cab Control Joystick 4000109 5 buttons, 1 joystick encoder with button, dimmable lighting, J1939 CAN® protocol - 3J0115-200
b-Drive Cab Conrol Joystick 4000110 5 buttons, 1 joystick encoder with button, dimmable lighting, CANopen® protocol - 3J0115-200N
b-DriveSupply B12604-BDS-100-2000 b-Drive cable
get more info on b-Drive Cab Control
Order information b-Drive Cab Control G2



Name Order number Description
b-Drive Cab Control G2 B12720-BDR-011-CW00 6 buttons, digital joystick witch encoder and pushbutton, dimmable lightning white, J1939 CAN-protocol
b-Drive Cab Control G2 B12720-BDR-021-CW00 6 buttons, analog joystick with encoder and pushbutton, dimmable lightning white, J1939 CAN-protocol
b-DriveSupply B12604-BDS-100-2000 b-Drive cable
get more info on b-Drive Cab Control G2
Order information SwitchModulesSealed



Name Order number Description
SwitchModulMaster IP68 B12460-SMM-000-E333 Switch module Master Sealed for Interface an CAN (J1939) with LIN Interface for SwitchModulExpansion, IP68, -40..+85°C, 9-32 V DC
SwitchModulExpansion IP68 B12461-SME-000-E333 Expansion Switch module Sealed with LIN Interface, IP68, -40..+85°C, 9-32 V DC - one SwitchModulMaster required -
get more info on SwitchModulesSealed
Order information KeypadModules



Name Order number Description
KeypadModulMaster 6 Buttons B12500-KMM-001-2Z3T Keypad module (2x3) for the connection to CAN (J1939) with LIN interface for SwitchModulExpansion, IP68, 1 000 000 cycles, -40..+85°C, 9..32 V DC
KeypadModulMaster 8 Buttons B12500-KMM-001-2Z4T Keypad module (2x4) for the connection to CAN (J1939) with LIN interface for SwitchModulExpansion, IP86, 1 000 000 cycles, -40..+85°C, 9..32 V DC
KeypadModulMaster 12 Buttons B12500-KMM-001-4Z3T Keypad module (4x3) for the connection to CAN (J1939) with LIN interface for SwitchModulExpansion, IP86, 1 000 000 cycles, -40..+85°C, 9..32 V DC
KeypadModulMaster 15 Buttons B12500-KMM-001-3Z5T Keypad module (3x5) for the connection to CAN (J1939) with LIN interface for SwitchModulExpansion, IP86, 1 000 000 cycles, -40..+85°C, 9..32 V DC
KeypadModulSupply 2m B12504-KMS-100-2000 Cable set power supply and CAN bus for KeypadModulMaster, Length 2m
get more info on KeypadModules
