End-to-End Solution Engineering
b-plus handles the analysis, design, integration, and automation of complex ADAS/AD HiL systems, combining customer-specific DUTs, data, networks, and validation processes into a ready-to-use solution.
Replay · ADAS/AD HiL Solution
Bringing Datacenter Performance to HiL
The b-plus HiL Solution combines powerful hardware and software building blocks with comprehensive engineering expertise for the validation of complex, data-intensive systems.
HiL Solution Engineering
From Individual Building Blocks to a Complete HiL System

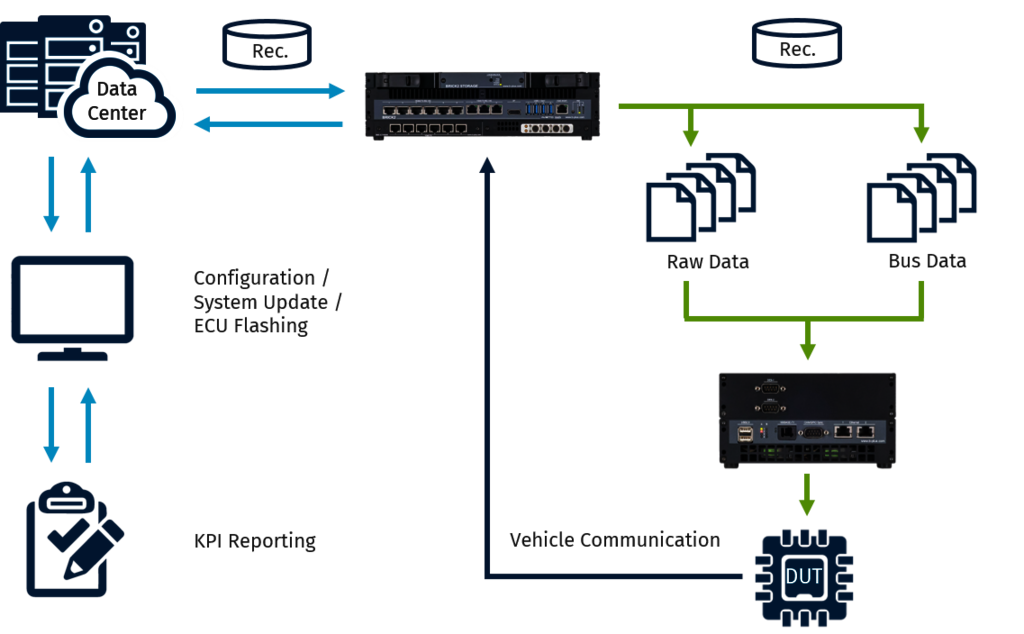

b-plus develops tailored validation solutions for customer-specific DUTs, interfaces, data formats, network architectures, and workflows. The SDBI Station provides the central hardware platform for high-performance data transfer and injection. Depending on the project, the scope ranges from individual building blocks to a fully integrated and automated system.
The modular architecture supports single-ECU, multi-DUT, and data center setups. Hardware and software resources can be expanded and reused across applications and projects.
Data Center Performance for HiL
b-plus combines data center technologies with deep engineering expertise to create highly scalable HiL solutions for data-intensive validation. The central hardware platform is the SDBI Station.
Scalable and Cost-Efficient
Reusable HiL resources across ECUs, applications, teams, and projects improve resource utilization and reduce lifecycle costs.
From Building Blocks to Complete HiL Systems
b-plus delivers modular HiL solutions at the integration level that best suits each customer project, ranging from individual hardware and software building blocks to fully integrated validation systems.
Why an Integrated HiL Solution?
Validate Complex Systems Reproducibly
A DUT does not operate in isolation. Operating states, communication partners, data streams, networks, and timing dependencies must be brought together within the HiL setup.
- Enable DUTs for HiL: Establish operating states, diagnostics, communication, and dependencies.
- Handle Data-Intensive Scenarios: Provide high bandwidth and low latency for open- and closed-loop operation.
- Generate Validatable Results: Capture, correlate, and evaluate DUT responses synchronously.
- Scale Without Changing Platforms: From individual ECUs to multi-DUT and data center setups.
End-to-End Engineering
From the Customer System to a Ready-to-Use Validation Environment
Customer knowledge and b-plus expertise are combined to design, integrate, and commission the solution for the specific application.
Analysis & Requirements
Analyze the system architecture, DUT dependencies, data formats, interfaces, and validation objectives.
Solution Architecture
Define hardware, software, and integration components based on data rate, latency, and real-time requirements. Learn more about the central hardware architecture of the SDBI Station.
System Integration
Integrate the DUT, replay, simulation, communication environment, and network paths.
Automation & Operation
Orchestrate test sequences, record responses, and provide results for validation.
Central Hardware of the HiL Solution
SDBI Station
The SDBI Station combines data center technologies with real-time data injection into physical ECUs. As the central hardware platform, it provides the high-performance foundation of the scalable b-plus HiL Solution.
RDMA & SmartNIC
Ultra-Low Latency
up to 4 × 200 Gbit/s
PCIe 5
Explore the SDBI Station
Validation Logic
From a Recorded Scenario to a Validatable Result
Recorded Data
HiL Stimulation
DUT Response
Response Recording
Evaluation
Use Cases
Scalable for Different Validation Scopes
Single-ECU Validation

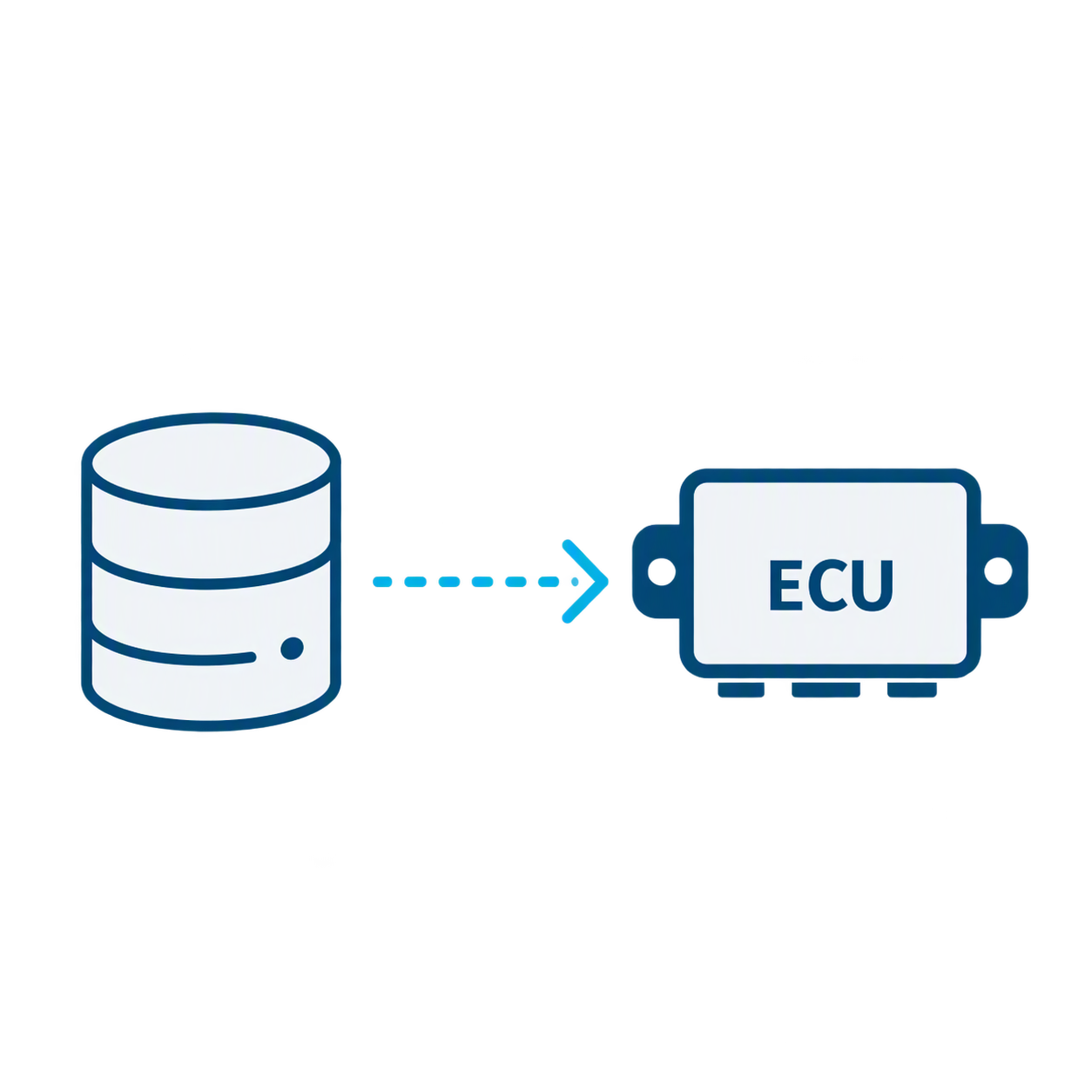

Synchronized replay and injection of sensor, bus, and network data for individual ECUs.
Multi-DUT Validation

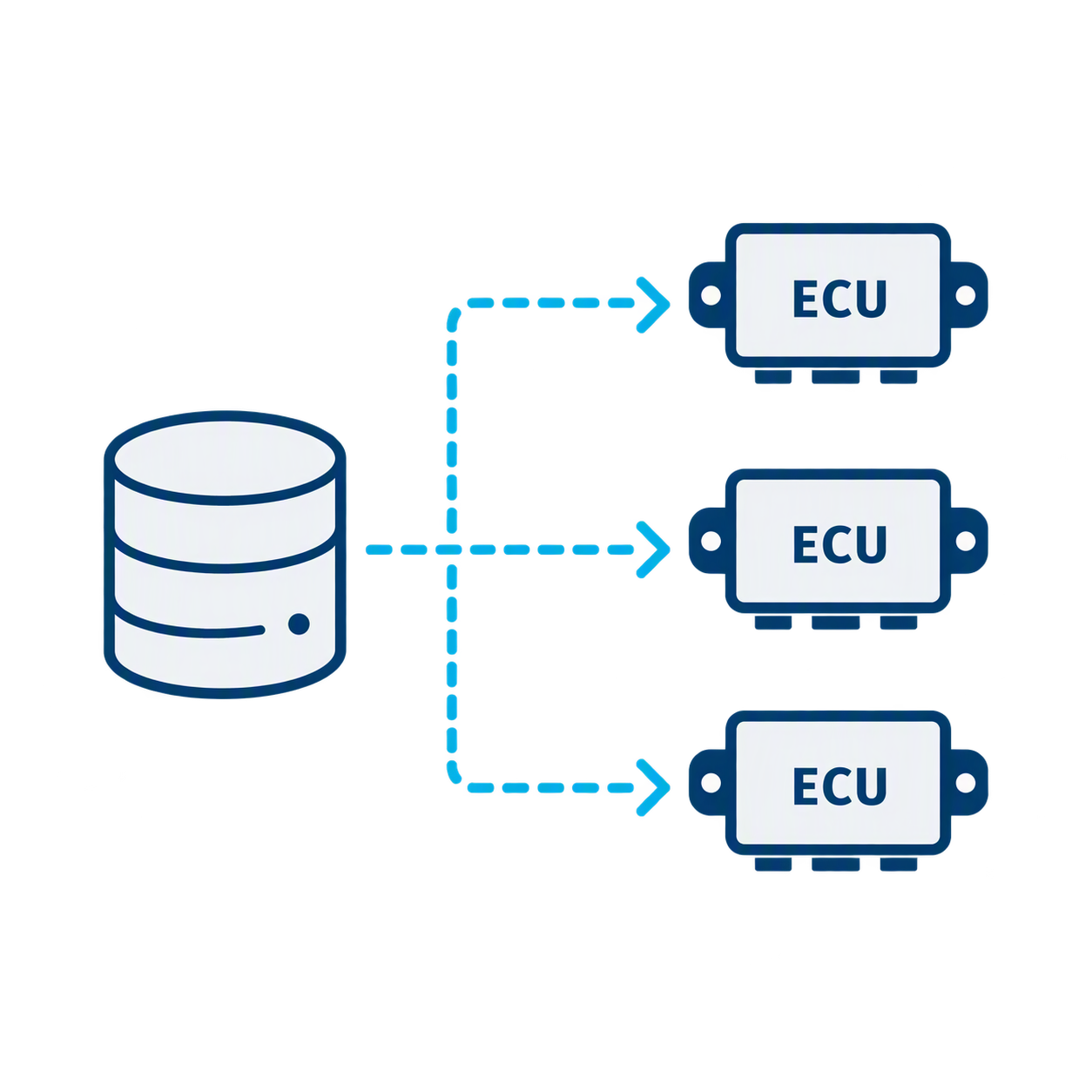

Parallel validation of multiple ECUs or devices under test on a scalable platform.
ADAS/AD-Controller

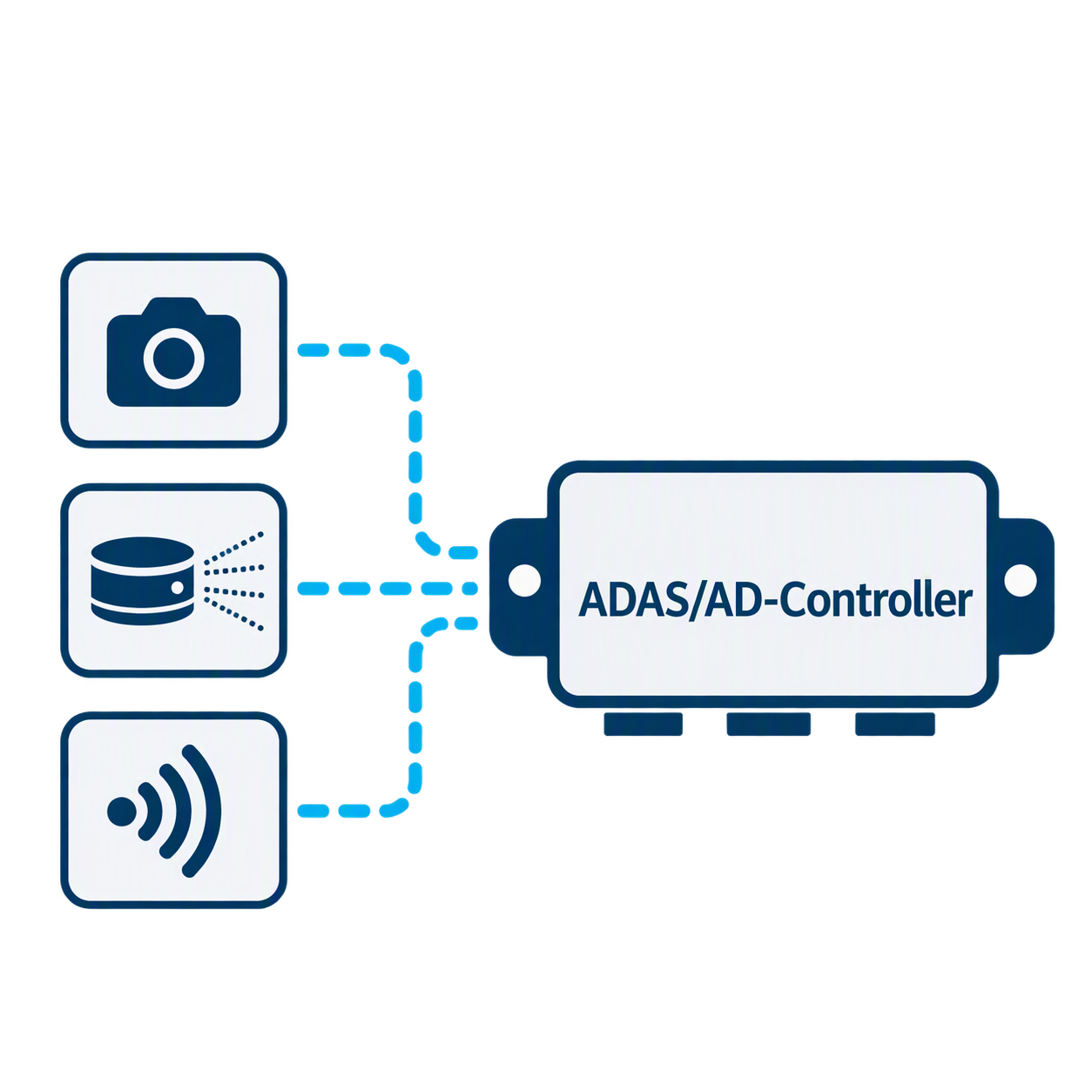

Validation of complex controllers using synchronized data from sensors, vehicle buses, and networks.
Data-Center-HiL

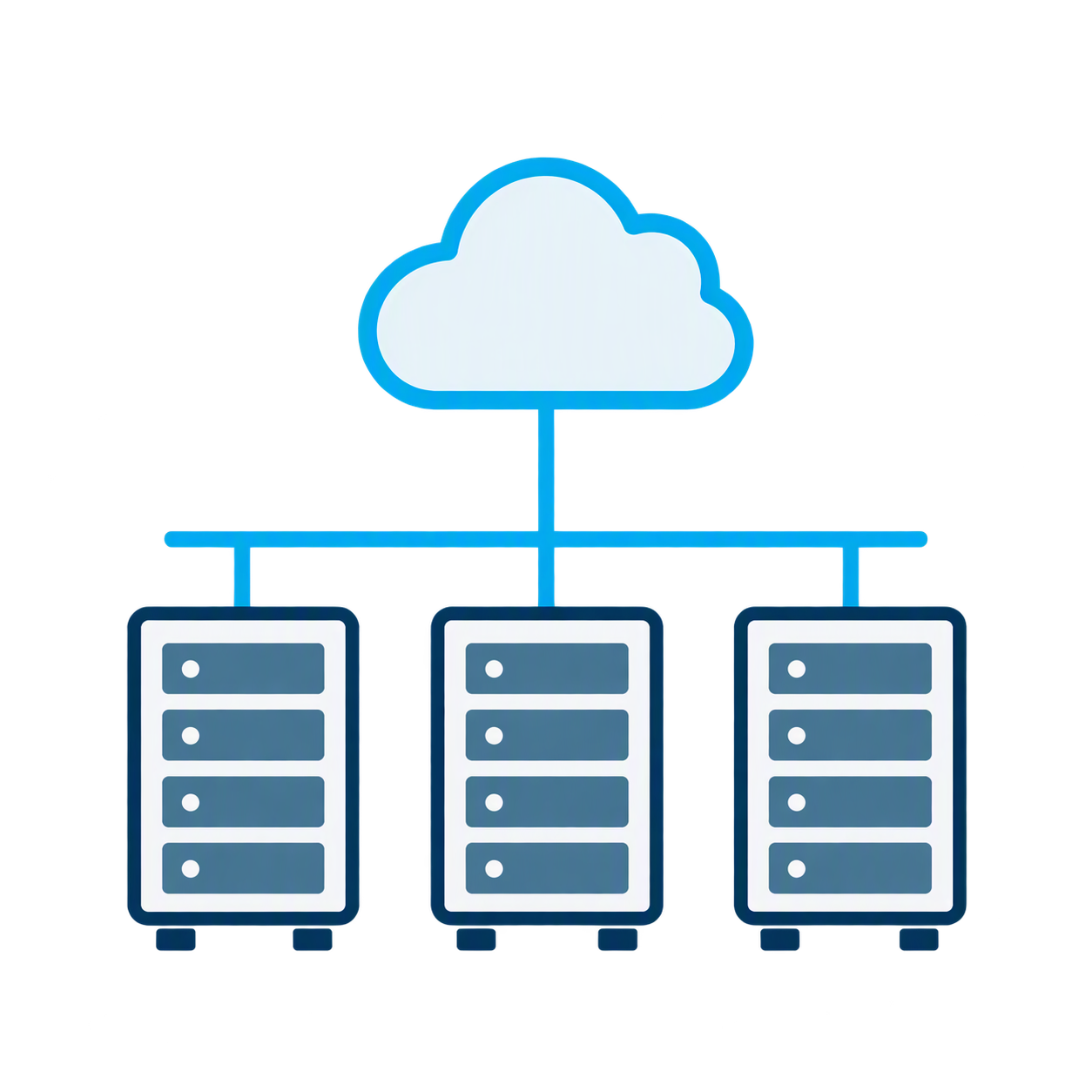

Provisioning and reuse of HiL resources across teams, applications, and projects.
Solution Building Blocks
Modular by Design. Integrated as a Solution.
The HiL Solution combines b-plus hardware, software, and engineering expertise into a customer-specific complete solution. The appropriate products and services are selected, integrated, and aligned with each validation task.
Hardware Platforms & Interfaces
Our computing, logging, networking, and injection platforms provide the technical foundation for powerful and scalable HiL setups.
Replay Software & Automation
Software and engineering building blocks provide precise synchronization, customer-specific data paths, and automated validation and test workflows.
ECU/DUT Handling
DUTs, simulation environments, third-party hardware, and existing toolchains are integrated into the HiL environment through customer-specific interfaces, data formats, and communication paths.
Engineering & System Integration
Engineering combines requirements, architecture, and integration into a coordinated overall system and supports configuration, commissioning, and automation.
Support, Maintenance & Lifecycle
Lifecycle services complement the technical solution with data processing, quality assurance, maintenance, training, and continuous operational support.
Technologies & Standards
Ready for Data-Intensive Validation
- Scalability
- Configurable open- and closed-loop tests
- Enables efficient sequential and parallel test runs in real-time
- Enhances throughput and accelerates the testing process
- Accommodates different hardware components and sensor models
- Integration with existing development and test environments
- Compatibility with other tools and systems
- Out-of-the-box inject hardware
- Raw data interfaces: CSI-2, GMSL2, FPD-Link III
- Suitable for high-performance AD platforms
