BRICK

Data Recorder BRICK
powerful measurement platform for
driver assistance systems and autonomous driving

The BRICK measurement technology platform was specially developed for the acquisition and recording of raw data from sensors and control units during test drives. BRICK acts as a powerful data logger that enables flexible adaptation and integration into development and validation systems for sensors and ECUs. Thanks to its optimized architecture, the measurement technology platform offers a wide range of validation applications. Thanks to its versatility as a data recorder, BRICK is ideal for test and validation processes where precise and reliable data recording is crucial.

Why choose BRICK?

Key Features

Modular and expandable system



Thanks to many flexible add-ons for additional interfaces and various powerful storage solutions, you can configure the BRICK according to your requirements and your use case. The modular system allows you to expand and adapt your setup as needed. This way, we offer you a future-proof investment.



XTSS Time Synchronization



This product supports XTSS – Time Synchronization Service – and is part of the highly accurate and performant timing concept of the AD Validation Toolbox. Learn more about the supported functions on this page.

Small form factor



Thanks to the compact form factor and easy rack installation, the entire ADAS/AD system solution can be installed in the vehicle without taking up much space or having to run additional cables.

Which BRICK is right for you?

Base system

BRICKplus

7655

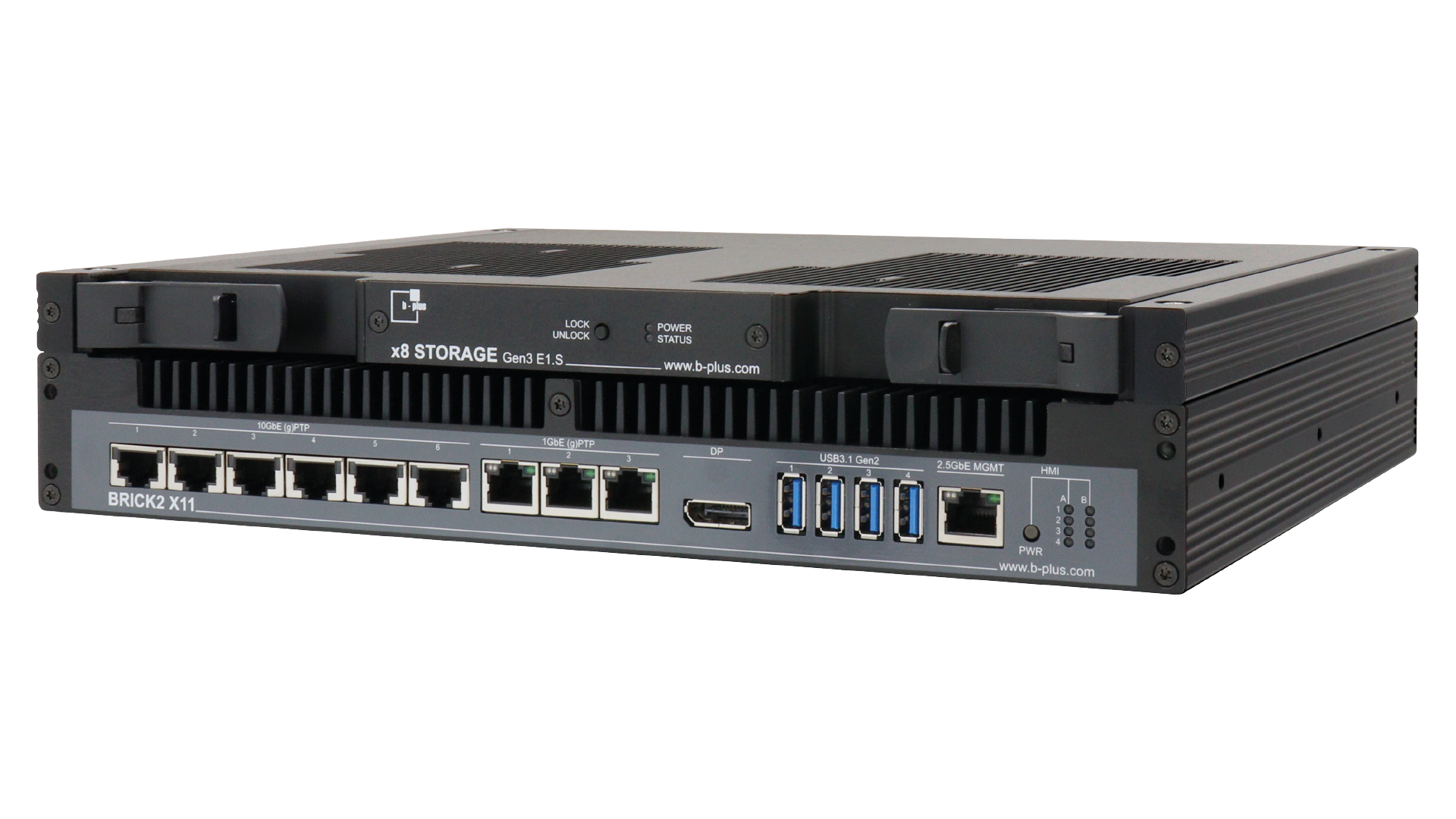

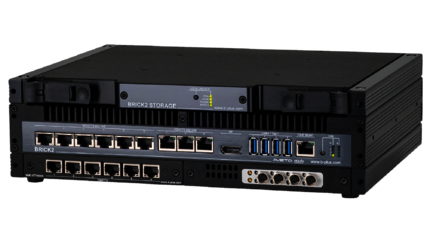

BRICK2

7654

Processor and Main Memory

Intel® Core™ i7-6820EQ

32 GB RAM DDR4-2133

128 GB internal M.2 SSD

Hexa Intel® Core™ i7-9850HE

64 GB RAM DDR4-2666

512 GB internal M.2 SSD

Ethernet

2x 10GBase-T Ethernet

5x 1000Base-T Ethernet

1x 1000Base-T Ethernet MGMT Port

6x 10GBase-T Ethernet

3x 1000Base-T Ethernet

1x 1000Base-T Ethernet MGMT Port

USB

4x USB3.1 Gen1 Host

4x USB3.1 Gen1

4x USB A 2.0

SATA

2x SATA 6G via SFF-8088

Time Synchronization

GPS

IEEE 802.1AS-2020

GPS

external serial port NMEA

IEEE 802.1AS-2020

Software Support

Windows 10 IoT Enterprise

Linux 64Bit

Windows 10 IoT Enterprise

Linux Ubuntu 20.04

Power Supply

12V (10V – 28V) wide range, 6V cranking safe

100 – 140 W

12V (10V – 32V) wide range, 6V cranking safe

150 – 220 W

Operating Temperature

active cooled closed finned heat sink

-25 °C to +70 °C

active cooled closed finned heat sink

-20 °C to +60 °C

Housing

aluminum profile housing



320 mm (w)

66 mm (h)

250 mm (d)

aluminum profile housing



320 mm (w)

66 mm (h)

250 mm (d)

get more info on the
BRICKplus
get more info on the
BRICK2





Bring flexibility into your setup

Add-Ons

Add-On BMC ETH6000

7754

Add-On BMC VB2

7755

Add-On SPC

7876

Add-On PCIe GPU

7875

GPU Performance

NIVIDA® RTX3060 GPU

3584 CUDA core

12 GB GDDR6

12,9 TFLOPs (FP32)

Extension offers

Measurement Card

6x 1000Base-T Ethernet (g)PTP

PoE

Measurement Card

8x CAN-FD or

4x CAN-FD and 2x FR

2 x8-PCIe 3.0 Slot cards

60 W max

2 x4 PCIe 3.0 Slot Cards

60 W max

get more info on the
Add-On BMC ETH6000
get more info on the
Add-On BMC VB2
get more info on the
Add-On SPC
get more info on the
Add-On PCIe GPU

Big Data? No problem!

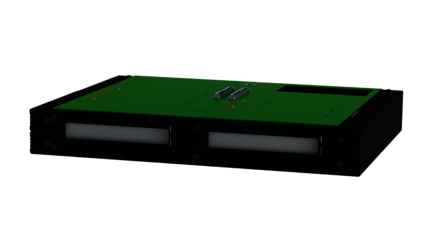

xSTORAGE

BRICK STORAGEplus

7701

BRICK2 STORAGE

7702

BRICK2 STORAGE NVMe

8275

x8 STORAGE – Gen4 E1.S

7703

PCI Express

PCI Express 3.0 x4 SATA RAID

PCI Express 3.0 x8 SATA RAID

PCI Express 3.0 x8 NVMe JBoF

PCIe 4.0 x8 NVMe RAID

SSD

8 x SATA SSD, passive cooling

8 x SATA SSD, passive cooling

8 x E1.S NVMe SSD, passive cooling

8 x E1.S NVMe SSD, passive cooling

USB-C

2x USB-C Data Interface (on request)

R7B Power Connector

(Requires TB3 compatible host system)

Performance

16 Gbit/s @ATX4

16 Gbit/s @BRICK2

16 Gbit/s @BRICKplus

24 Gbit/s @ATX4

24 Gbit/s @BRICK2

48 Gbit/s @ATX4

32 Gbit/s @BRICK2

96 Gbit/s @ATX4 PCIe4

48 Gbit/s @ATX4 PCIe3

32 Gbit/s @BRICK2

20 Gbit/s @USB-C

Storage Capacity

8 TB

16 TB

32 TB

8 TB

16 TB

32 TB

15 TB

30 TB

60 TB

15 TB

30 TB

60 TB

Hot-Plug

Encryption

Typical Power Consumption

up to 50 W

up to 50 W

up to 109 W

up to 109 W

Operating Temperature

@ max. performance

-10 °C to +50 °C (EVO)

-20 °C to +70 °C (EXT)

-10 °C to +50 °C (EVO)

-20 °C to +60 °C (EXT)

-10 °C to +60 °C @ ATX4

-10 °C to +55 °C @ BRICK2

-10 °C to +60 °C @ ATX4

-10 °C to +55 °C @ BRICK2

Housing

Solid aluminum housing



280 mm (w)

22 mm (h)

248 mm (d)

Solid aluminum housing



280 mm (w)

22 mm (h)

248 mm (d)

Solid aluminum housing



280 mm (w)

22 mm (h)

248 mm (d)

Solid aluminum housing



280 mm (w)

22 mm (h)

248 mm (d)

get more info on the
BRICK STORAGEplus
get more info on the
BRICK2 STORAGE
get more info on the
BRICK2 STORAGE NVMe
get more info on the
x8 STORAGE – Gen4 E1.S

Get inspired by high-performance hardware and a suitable storage concept!

Complete your setup

Accessories

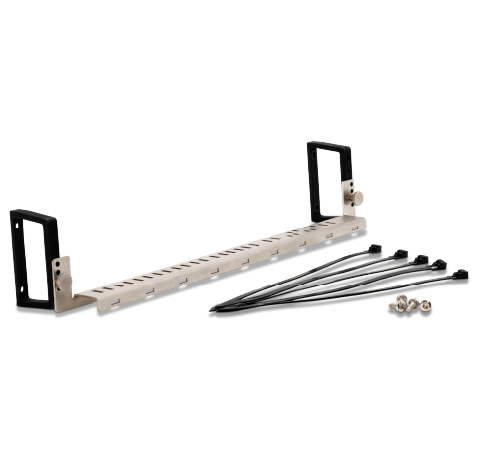

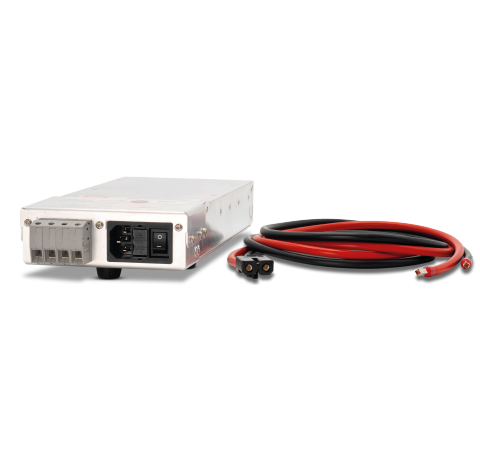

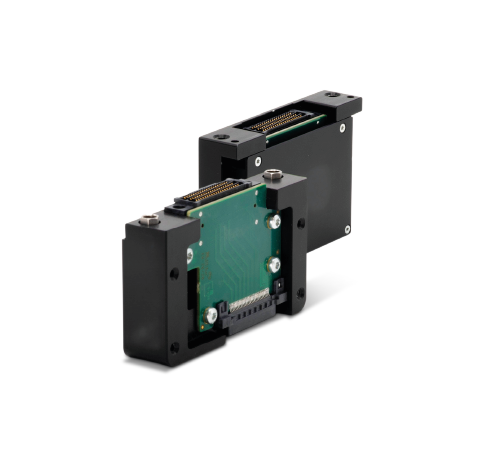

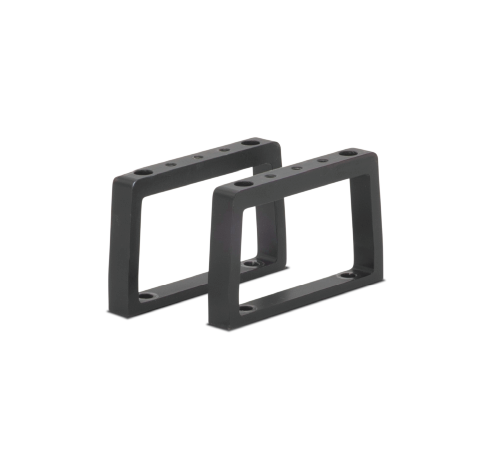

BRICK Accessories
