ADAS data logger BRICKplus

ADAS measurement platform

ADAS Datenlogger BRICKplus ADAS Datenlogger BRICKplus

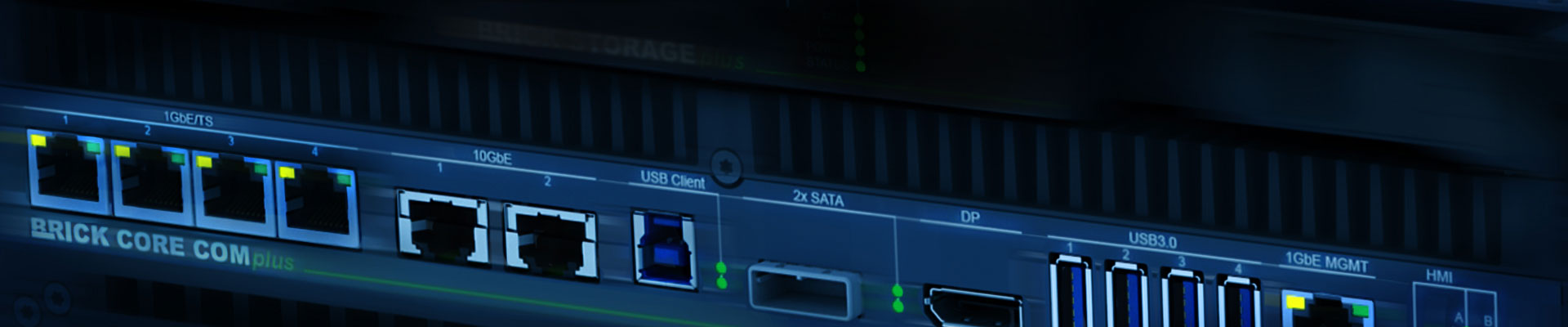

The ADAS measurement platform BRICKplus is especially designed for the data acquisition of high-bandwidth sensors, ECUs, etc.  The platform with an acquisition speed of 16 Gbit/s combined with the BRICKplus STORAGE Add-On offers a logging storage up to 32 TB.

With the BRICKplus MI Add-On it is also possible to integrate customer-specific PCI express-cards. Due to the compact rack setup, which is optimized for small space in the vehicle, you can install the whole system solution with less wiring effort.

Add-on SPC

Expansion for 2x x8-PCIe 3.0 Slot cards

Add-on SPC



  • PCIe Slot left: Mechanical x16, electrical x8 |
    8 Lanes PCIe 3.0 extension slot

  • PCIe Slot right:  Mechanical x8, electrical x8 |
    8 Lanes PCIe 3.0 extension slot

  • PCIe Card size: max. half size cards, 106.68 mm (height) X 175.26 mm (long), 1 slot mounting



Add-on BMC

Expansion for up to 2 measurement cards on one BRICK (BMC = BRICK Measurement Card)

Add-on BMC

  • BMC ETH 6000 - Time-synchronized measurement card with 6 1GbE 802.1AS ports and power over ethernet support

  • BMC VB2 - Flexible BRICK measurement Card with 8 CAN-FD or 4 CAN-FD and 2FR

    • Up to 2 cards on one BRICK offers up to 16 CAN FD or various configurations of CAN FD  / FlexRay interfaces
    • Modular concept with up to 4 bus modules (tiny)


Power Supply for BRICK



Time Synchronization

This product supports XTSS – Time Synchronization Service – more information here.

    • BRICK STORAGEplus

      Removeable storage unit
      Write speed of up to 16 Gbit/s and up to 32 TB capacity



      • Present generation of processors with max. computing and graphic performance
      • 32GB DDR4 RAM for extreme high storage bandwidth
      • Support for Server RAID based Storage “BRICK STORRAGEplus”
      • 2x 10 Gb Ethernet for high-band recording and forwarding of measurement data
      • Platform Time synchronization based on hardware architecture
      • Time synchronization based on IEEE Std 802.1AS for synchronous recording and clustering of systems
      • Extended operating temperature range
      • GPIO panel for tagging and triggers, CFast-slot for configuration and service
      • BRICK CORE COM LOG Add-on: Extension for removable storage unit for data logging
      • BRICK CORE COM MILOG Add-on: MI – extension for PCIe plugin cards or BRICK measurement Card (BMC)

    • Processor and main memory

      • Intel® Core™ i7-6820EQ (4x 2,8 GHz)
      • 32 GB DDR4 RAM
      • 128 (512) GB M.2 internal SSD

      Interfaces

      • 2x RJ45 10GbE (Data back bone) for easy networking on system level with highest bandwidth
      • 6x RJ45 1GbE, 5x with hardware time stamps
      • DisplayPort
      • 2x SATA 6G via SFF-8088 (external lockable conn.)
      • 4x USB 3.0 Host / 1x USB 3.0 Client
      • M.2 mass storage interface (internal)
      • External accessible CFast mass storage interface
      • SYSCTRL (Ignition In, clamp 15, CAN-Bus for control – from the house keeping controller)
      • GPIO (4x In, 4x Out – ca. 1A HighSide @12V power supply)
      • WLAN 802.11 a/b/g/n (Option)
      • GPS (position and time, time-master)
      • LTE/UMTS on request for e.g. fleet management
      • Microphone input, e.g. for message to the measurement trigger
      • Headphone output

      Time synchronization

      • Internal hardware-based and IEEE Std 802.1AS & GPS

      Software support

      • 64Bit Windows 10 IoT Enterprise x64
      • Linux 64Bit
      • Other OS on request

      High-End-FAS Frameworks

      • Application ready for the AVETO toolchain und 3rd party frameworks

      Power supply

      • 12V, 24V / cranking save in the car down to 6,5V
      • Power Consumption range between ca. 80 and 140 Watt (including Storage) depending on setup and performance level and maximum 60W for SPC Add on

      Operating temperature range

      Active cooled in the closed finned heat sink

      • At typical performance (@2,8 GHz): -25°C ~ +70°C

      Housing

      • Robust aluminum profile housing
      • BRICK CORE COM B: 320mm, H:44mm (1HE), T:250mm
      • BRICK CORE COM LOG B: 320mm, H:66mm(1,5HE), T:250mm
      • BRICK CORE COM MILOG: B:320mm, H:110mm(2,5HE), T:250mm

      Certification

      • CE / VCCI / FCC / KC / RoHS / REACH / ICES

    • High performance

      Quad-Core Intel® Core™ i7 Processor

      High bandwidth

      Permanent data throughput up to 16Gb/s in combination with BRICK STORAGEplus

      Slot for Add-On: BRICK STORAGEplus

      Minimal height (22mm) and fast changeable for memory extensions up to 32 TB

      Slot for Add-On: BRICK STORAGEplus

      CARTRIDGES up to 32TB capacity with PRO SSD. Based on latest Server RAID technology writing speed up to 16Gb/s

      Slots for PCIe cards

      Add-On: MI SPC - high bandwidth connection to the main system for measurement Cards

      Extension for BMC (BRICK Measurement Card)

      Add on Base for up to 4 BMC Modules like BMC-VB2 (CAN/Flexray) and BMC-ETH6000 (6x 1GbE PoE)

      Robust and compact hardware platform

      Designed for harsh environmental conditions and minimal dimensions

      Massive I/O Bandwidth

      PCI Express 3.0 system mit 2x 10 GBit  Ethernet, 6x 1 GbE, USB 3.0, GPIOs, SATA

      Time Synchronization

      Platform internal: hardware-based time synchronization of Ethernet and GPS
      Cross-platform: Software application for Ethernet time synchronization via IEEE 802.1AS / IEEE 1588

    • Name

      		Order-Nr.Description
      BRICK CORE COMplus 6820EQ

      B17575-BCC-1xx-0000

      High Performance Measurement Platform for ADAS development

      BRICK STORAGEplusB17575-BSC-1xx-0000

      CARTRIDGES up to 32 TB capacity with PRO SSD, Based on latest server RAID technology serving a writing speed up to 16Gb/s

      BRICK CORE COMplus 6820EQ SPCB17575-BCC-1xx-SA00High Performance Measurement Platform, SPC Expansion for 2x x8-PCIe 3.0 Slot cards
      BRICK CORE COMplus 6820EQ BMCB17575-BCC-1xx-BA00High Performance Measurement Platform, BMC Expansion for 2x BMC modules
      BMC ETH 6000 Add-onB17575-BMC-ETH-6000BRICK Measurement Card BMC-ETH 6000
      BMC VB2 Add-onB17575-BMC-VB2-0008BRICK Measurement Card BMC-VB2 8x CAN FD
      BMC VB2 Add-onB17575-BMC-VB2-0002BRICK Measurement Card BMC-VB2 2x CAN FD
