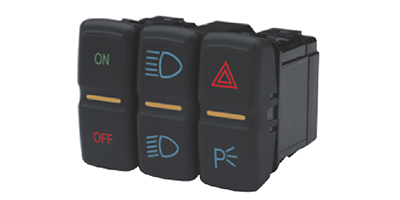

The switch modules are equipped with a modular structure and its focus on the on-board area, perfect for installation in commercial vehicles as switching modules.
Key features
Hardware specification
Protocol: SAE J1939 (LIN2.0 internal)
Life time: Up to 300000 cycles
Expansion: Up to 7 expansion modules for up to 24 rockers
Protection class: IP53
Operating temperature: -40 bis +85°C
Operating voltage: 12/24 V DC
Description
The module concept consists of a master module that connects directly to the SAE J1939. Up to 7 expansion modules can be attached via a module integrated LIN 2.0 master in the bus. This enables up to 24 conventional switches to be replaced.
The individual switches can be equipped with different subactuators, whereby it can be utilized as a push-button or a switch key. The three rockers are clipped upon the module. They are available with or without a custom label.
Basically, this modules are equipped with a 4-color status indicator bar between the buttons and a separate lighting of the symbols (On, Off, Flash). “Wake on CAN” or “Wake on switch” functions are implemented for a power saving operation.
The modules can be easily configured and b-plus offers a free software component for CoDeSys® for these modules.
Order information
Name
Order_number
Description
SwitchModulMaster
B12400-SMM-001-E321
Switch module Master for the connection to CAN (J1939) with LIN for the SwitchModulExpansion, IP53, 300 000 Cycles,-40..+85°C,12 VDC
SwitchModulMaster
B12400-SMM-001-E323
Switch module Master for the connection to CAN (J1939) with LIN for the SwitchModulExpansion, IP53, 300 000 Cycles,-40..+85°C,24 VDC
SwitchModulExpansion
B12401-SME-001-E322
ExpansionSwitch module with LIN , IP53, 300 000 Cycles, -40..+85°C, 12 V DC - SwitchModulMaster required
SwitchModulExpansion
B12401-SME-001-E324
ExpansionSwitch module with LIN , IP53, 300 000 Cycles, -40..+85°C 24V DC - SwitchModulMaster required
SwitchModulRocker
B12402-SMR-001-E32B
Set consisting of 3 Rocker for the SwitchModulMaster and SwitchModulExpansion - one set per SwitchModul -
SwitchModulRocker
B12402-SMR-002-E32B
Set consisting of 3 Rocker for the SwitchModulMaster and SwitchModulExpansion - one set per SwitchModul - customized engraving -
SwitchModulDummyRocker
B12402-SMD-001-7354
Blind cap (1 Rocker) for the SwitchModulMaster and SwitchModulExpansion
SwitchModulSubactuator
B12403-SMS-003-4043
Subactuator for the SwitchModulMaster and SwitchModulExpansion snap / snap / snap – one per rocker
SwitchModulSubactuator
B12403-SMS-004-4043
Subactuator for the SwitchModulMaster and SwitchModulExpansion push / snap / push – one per rocker
SwitchModulSubactuator
B12403-SMS-006-4043
Subactuator for the SwitchModulMaster and SwitchModulExpansion snap / - / snap – one per rocker
SwitchModulSupply
B12404-SMS-100-2000
Cable set power supply and CAN-Bus for the SwitchModulMaster, Length: 2 m
SwitchModulConnection
B12405-SMC-100-0025
Cable set Connection between SwitchModules, Length 0,25 m
SwitchModulConnection
B12405-SMC-100-2000
Cable set Connection between SwitchModules, Length 2,0 m
