IP68 Modular switch modules with SAE J1939 interface

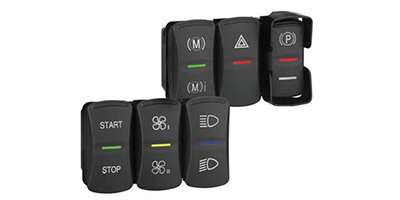

With their modular design and their focus on the on-board area, the SwitchModulesSealed are perfectly suited for installation as switch modules in commercial vehicles.
Technical details
Hardware specification
Protocol: SAE J1939 (LIN2.0 internal)
Life time: Up to 500000 cycles
Expansion: Up to 7 expansion modules for up to 24 rockers
Protection class: IP68
Operating temperature: -40 bis +85°C
Operating voltage: 9 - 32 V DC
Mechanical Shock: 30g for 11ms
Mechanical Vibration: MIL-STD-202F/201A 2.0g random
Description
The module concept consists of a master module that connects directly to the SAE J1939. Up to 7 expansion modules can be attached via a module integrated LIN 2.0 master in the bus. This enables up to 24 conventional switches to be replaced.
The individual switches can be equipped with different sub actuators, whereby it can be utilized as a push-button or a switch key. The three rockers are clipped upon the module. They are available with or without a custom label.
Basically, this modules are equipped with a 4- colour status indicator bar between the buttons and a separate lighting of the symbols (On, Off, Flash).
“Wake on CAN” or “Wake on switch” functions are implemented for a power saving operation.
The modules can be easily configured and b-plus offers a free software component for CODESYS® for these modules.
Order information
Name
Order_number
Description
SwitchModulMaster IP68
B12460-SMM-000-E333
Switch module Master Sealed for Interface an CAN (J1939) with LIN Interface for SwitchModulExpansion, IP68, -40..+85°C, 9-32 V DC
SwitchModulExpansion IP68
B12461-SME-000-E333
Expansion Switch module Sealed with LIN Interface, IP68, -40..+85°C, 9-32 V DC - one SwitchModulMaster required -
SwitchModulMaster Sealed
B12450-SMM-001-E333
Switch module Master Sealed for Interface an CAN (J1939) with LIN Interface for SwitchModulExpansion, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC
SwitchModulMaster Sealed pg
B12450-SMM-001-E33F
Switch module Master Sealed with FULL palm guard for Right rocker for Interface an CAN (J1939) with LIN Anschluss for SwitchModulExpansion, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC
SwitchModulMaster Sealed pg
B12450-SMM-001-E33T
Switch module Master Sealed with TOP palm guard for Right rocker for Interface an CAN (J1939) with LIN Interface for SwitchModulExpansion, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC
SwitchModulMaster Sealed pg
B12450-SMM-001-E33B
Switch module Master Sealed with BOTTOM palm guard for Right rocker for Interface an CAN (J1939) with LIN Interface for SwitchModulExpansion, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC
SwitchModulExpansion Sealed
B12451-SME-001-E333
Expansion Switch module Sealed with LIN Interface, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC - one SwitchModulMaster required -
SwitchModulExpansion Sealed pg
B12451-SME-001-E33F
Expansion Switch module Sealed with FULL palm guard for Right rocker with LIN Interface, IP68, 500 000 Cycles, -40..+85°C, 9..32 V DC - one SwitchModulMaster required -
SwitchModulExpansion Sealed pg
B12451-SME-001-E33T
Expansion Switch module Sealed with mit TOP palm guard for Right rocker with LIN Interface, IP68, 500 000 Cycles, -40..+85°C, 9..32 V DC - one SwitchModulMaster required -
SwitchModulExpansion Sealed pg
B12451-SME-001-E33B
Expansion Switch module Sealed with BOTTOM palm guard for Right rocker with LIN Interface, IP68, 500 000 Cycles, -40..+85°C, 9 .. 32 V DC - one SwitchModulMaster required -
SwitchModulRocker Sealed
B12452-SMR-001-E33F
rocker (Rocker) for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed ht up
B12452-SMR-002-E33U
rocker (Rocker) half Operation UP for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed ht down
B12452-SMR-003-E33D
rocker (Rocker) half Operation DOWN for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed indicator
B12452-SMR-004-E33B
rocker (Rocker) without Operating for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed red
B12452-SMR-005-E33F
rocker red (Rocker) for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed red ht up
B12452-SMR-006-E33U
rocker red (Rocker) half Operation UP for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed red ht down
B12452-SMR-007-E33B
rocker red (Rocker) half Operation DOWN for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
SwitchModulRocker Sealed pg
B12452-SMR-001-E33G
rocker (Rocker) for palm gard for SwitchModulMaster Sealed and SwitchModulExpansion Sealed
