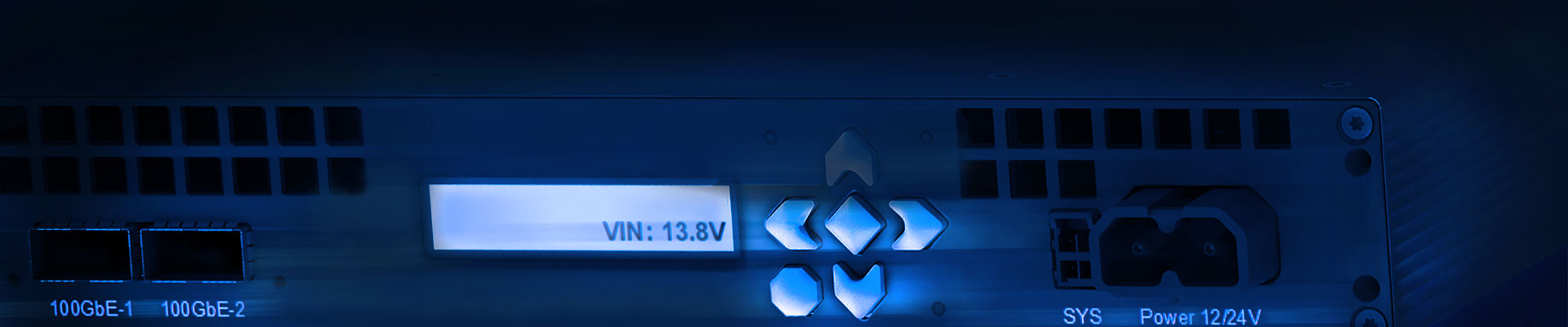

The MDLake is a compact network storage that has been specially developed for mobile SAN applications. Under the requirements of the automotive industry, it combines server storage technology, NVMe interfaces and high-performance network technology, as used in data centers and servers. Thanks to daisy chaining, the MDLake enables the flexible and scalable connection of multiple storage units and data acquisition systems. Technologies such as NVMe oF (NVMe over Fabrics) and RDMA achieve a high bandwidth and therefore the highest read and write rates. MDLake is the high-performance mobile storage solution for your valuable sensor data generated during the development and testing of high-performance real-time applications such as driver assistance systems and highly automated vehicles.
Why choose MDLake?
Key Features
Which MDLake is right for you?
Base System
MDLake 100G – c-temp
|
MDLake 100G – e-temp
|
|
|---|---|---|
Operating Temperature |
0 °C to +50 °C |
-10 °C to +60 °C |
SSD Quantity |
16 |
8 |
Sustained Write Speed |
1x 80 Gbit/s to 2x 64 Gbit/s |
1x 80 Gbit/s to 2x 64 Gbit/s |
Storage Capacity |
16x 3.84 TB (60T) 16x 7.68 TB (120T) |
8x 7.68 TB (60T) |
SSD type |
1U Short Device Form Factor SFF-TA-1006 (E1.S) |
1U Short Device Form Factor SFF-TA-1006 (E1.S) |
Power Supply |
6.5 – 32 V DC 10 – 32 V permanent 400 W max. / 250 W typical Ignition/Terminal 15 input |
6.5 – 32 V DC 10 – 32 V permanent 400 W max. / 250 W typical Ignition/Terminal 15 input |
HMI |
16x2 character LCD display for system control and monitoring |
16x2 character LCD display for system control and monitoring |
Software Support |
Windows Client (with NVMe-oF Initiator) Windows Server Linux |
Windows Client (with NVMe-oF Initiator) Windows Server Linux |
Configuration |
10/100M Ethernet Management Port Web Interface |
10/100M Ethernet Management Port Web Interface |
Compatibility |
Any RoCE/NVMe-of compatible Ethernet Interface Verified: NVIDIA/Mellanox ConnectX-5 & ConnectX-6 solutions |
Any RoCE/NVMe-of compatible Ethernet Interface Verified: NVIDIA/Mellanox ConnectX-5 & ConnectX-6 solutions |
Housing |
320 mm (w) 44 mm (h) 380 mm (d)
~5.2 kg |
320 mm (w) 44 mm (h) 380 mm (d)
~5.2 kg |
Packaging |
delivery in 550 x 500 x 94 mm flight case |
delivery in 550 x 500 x 94 mm flight case |
|
get more info on the
MDLake 100G – c-temp |
get more info on the
MDLake 100G – e-temp |
