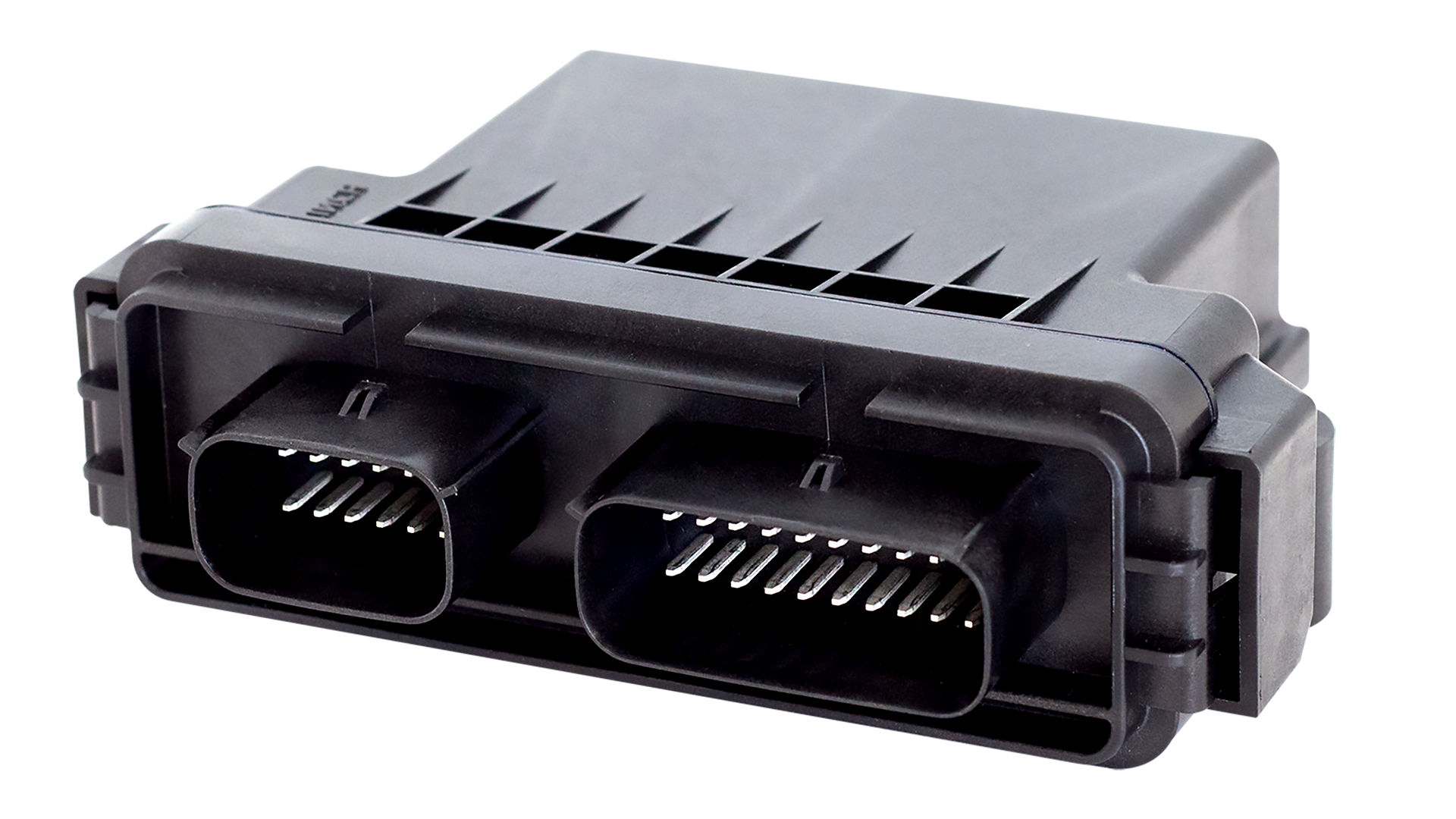

b-CANCubeMini Sealed

Small controller for mobile machines


The small controller is equipped with a powerful 32-bit µcontroller and offers a flexible basis for a wide range of control tasks with 12 multifunctional inputs/outputs as well as 3 CAN, 2 RS232 and an RS485 interface.

The b-CANCubeMini Sealed was specially designed for outdoor use in mobile machines and vehicles.

      • Operating temperature: -40 … +85°C
      • Protection class: IP 67 / IP 69K
      • Weight: 0,180 kg
      • Qualification: CE / E-approval
      • Dimensions: 128 x 94 x 41 mm (WxHxD)
      • Housing: plastic, black
      • Mounting: Two mounting straps
      • Bus interfaces: 3 CAN bus (high-speed) according to ISO 11898-2
      • 2 Serial RS232 (RxD, TxD, GND)
      • 1 RS485 (A, B)
      • Power supply: 8 ... 32 V DC
      • Processor: CORTEX M4 32bit, 100MHz
      • Memory: 1.5MB Flash, 320kB RAM, 16kB FRAM

    • Bus communication

      Three CAN interfaces, e.g. for connection to various engine control units or CAN operating elements from b-plus. In addition to CAN, two serial RS232 interfaces and an RS485 interface are available..

      Multifunctional inputs and outputs

      12 variable parametrizable inputs and outputs offer the flexibility to be adapted to the particular application.

      Robust mechanics

      A robust housing enables an IP protection degree of up to IP 69K.

      Free programmable

      Programming in C; a user-friendly API provides an effective introduction to programming.

    • Inputs

      Function6x Input
      Voltage 0 .. 10 Vx
      Voltage 0 .. 32 Vx
      Current 0 .. 20 mAx
      Frequency (<= 30kHz)x
      Resistor (<= 5 kOhm)x
      Digital (high / low switching)x



      Outputs

      Function6x Output
      Digital (high switching)x
      PWM output (20… 250 Hz)x
      Current regulated output (accuracy 2%)x
      • Protection against short circuit and excess temperature
      • Diagnostic capability
      • max. 2A per output
    • NameOrder_number
      b-CANCubeMini SealedB20300-CMS-001-0001
      b-CANCubeMini Connection-SetB20300-CMS-000-C001
      b-CANCubeMini Sealed Starter Set

      B20300-CMS-001-S302
